Column Pumps

    Home Column Pumps

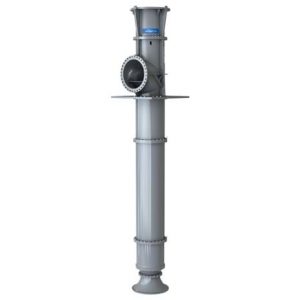

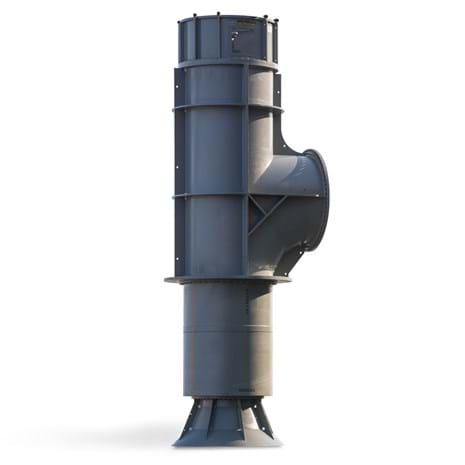

    Column Pumps

    OVERVIEW

    • Custom designing pumps for each application enables our engineering team to maximize pumping efficiencies. Operating efficiencies of up to 92% result in significant cost savings.
    • Available in different metallurgies, including various cast irons and stainless steels to meet application-specific requirements.

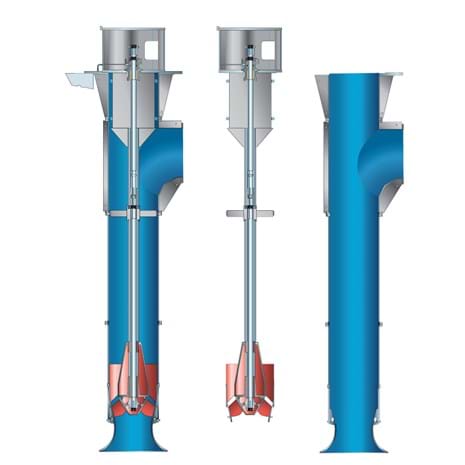

    • Optional pull-out element configuration is offered for semi-enclosed impeller pumps. The pull-out design substantially reduces maintenance and downtime costs by allowing removal of rotating element without disturbing the suction bell, column and discharge piping or draining the sump.
    • Flygt equipment rugged heavy-duty construction, cast bowl components and conservative design minimize vibration and provide for long term trouble-free operation.
    • Driver mounted directly above the pump offers valuable savings in floor space and reduces station footprint.
    • With full-scale performance testing capabilities up to 520,000 GPM (120,000 m3/hr) or 9850 HP (7350 kW) the performance of each pump can be accurately certified before it leaves the factory.
    • Readily-accessible service centers, technical know-how, spare parts, and support to ensure minimal downtime costs and the most cost-effective operations.

    FEATURES

    • Flows to 400,000 gpm (91,000 m3/h)
    • Heads to 600 ft TDH (180 m)
    • 32″ to 156″ Discharge (813 to 3962 mm)
    • Semi-Enclosed Impeller Models WCAX, YDD, WCA, WCF and WCB​
    • Enclosed Impeller Models WMCC and WMCE​

    For Sales and Repair, Call + 61 2 9457 8622
