U High-Capacity Series

    Home U High-Capacity Series

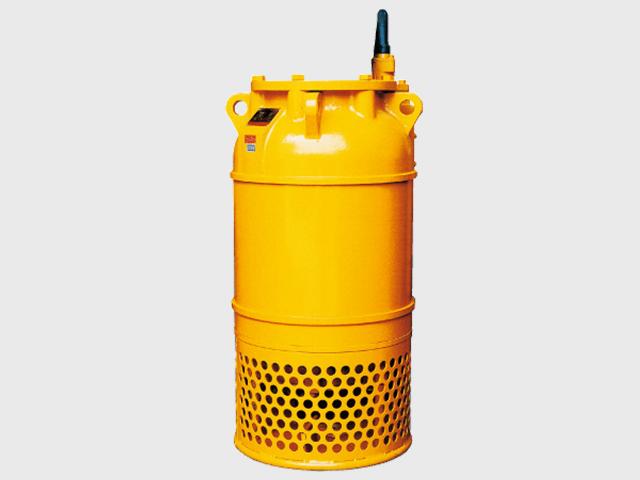

    High-Capacity Submersible Dewatering Pumps

    OVERVIEW

    Suitable for dewatering large volume of water, easy to handle and efficient in performance.

    APPLICATION

    • Drainage out of sumps, pits, quarries, mining, cellars, tunnels, harbor and agricultural irrigation projects, reclaiming operations, power station constructions, waste, storm or emergency water removal, dams.

    UH Capacity

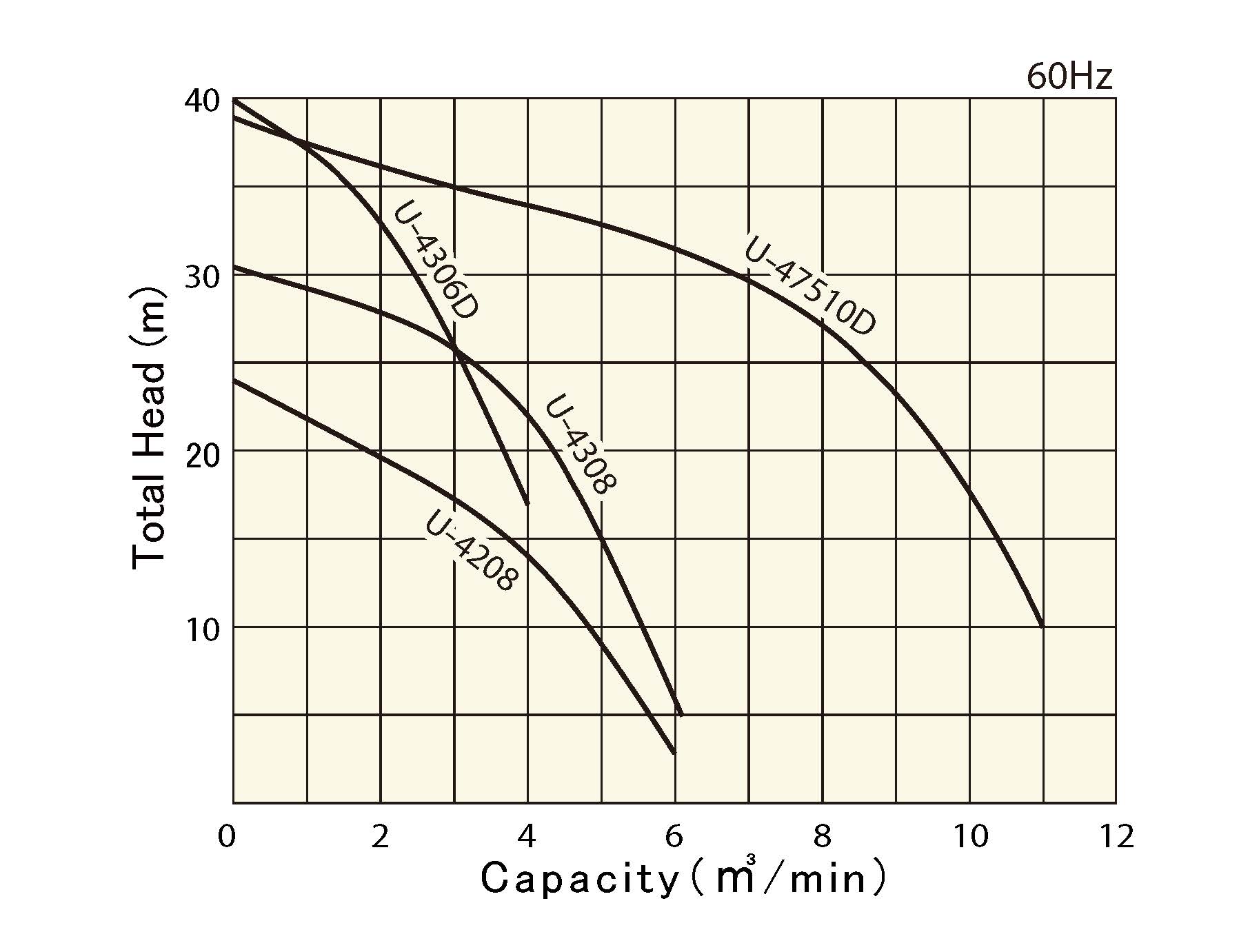

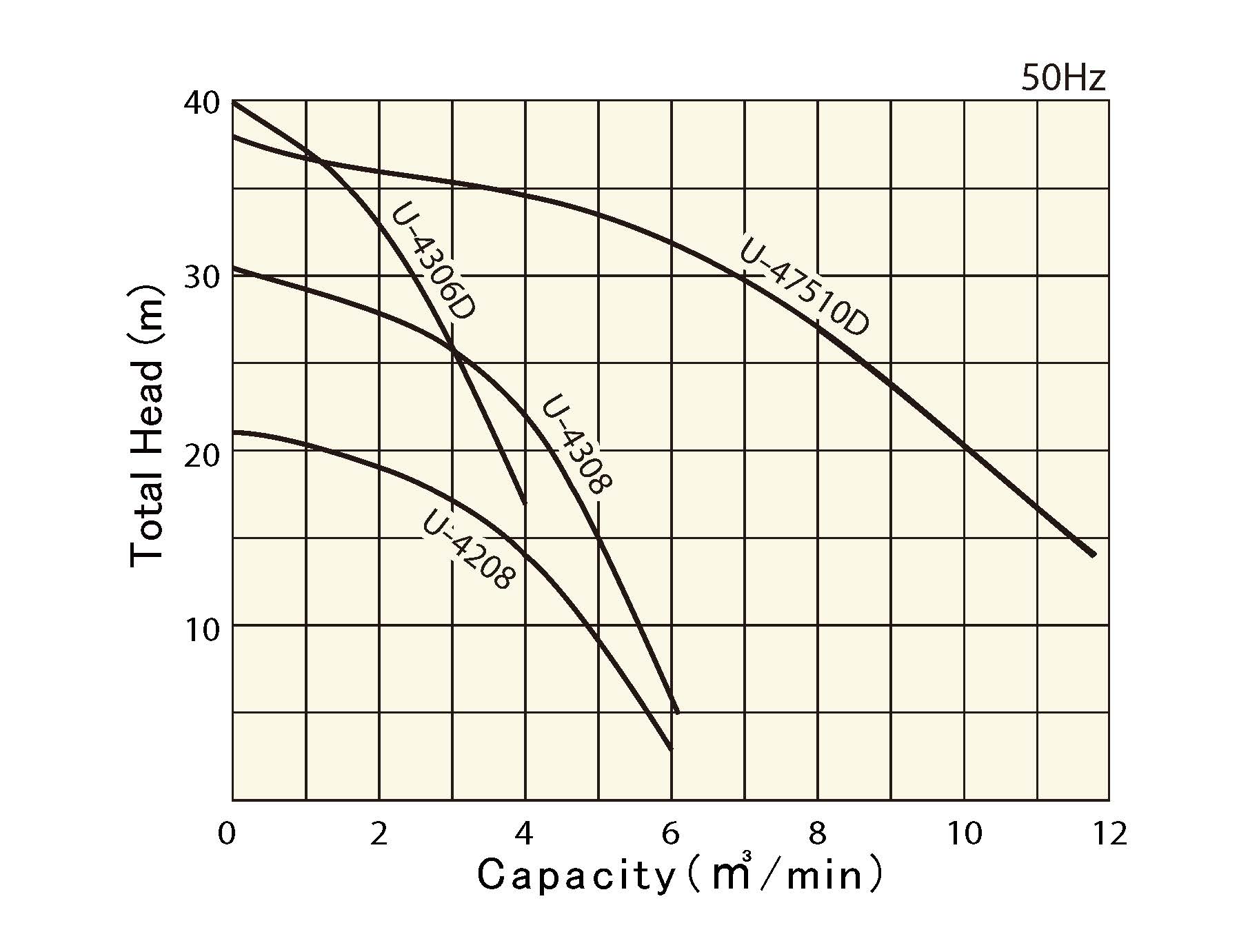

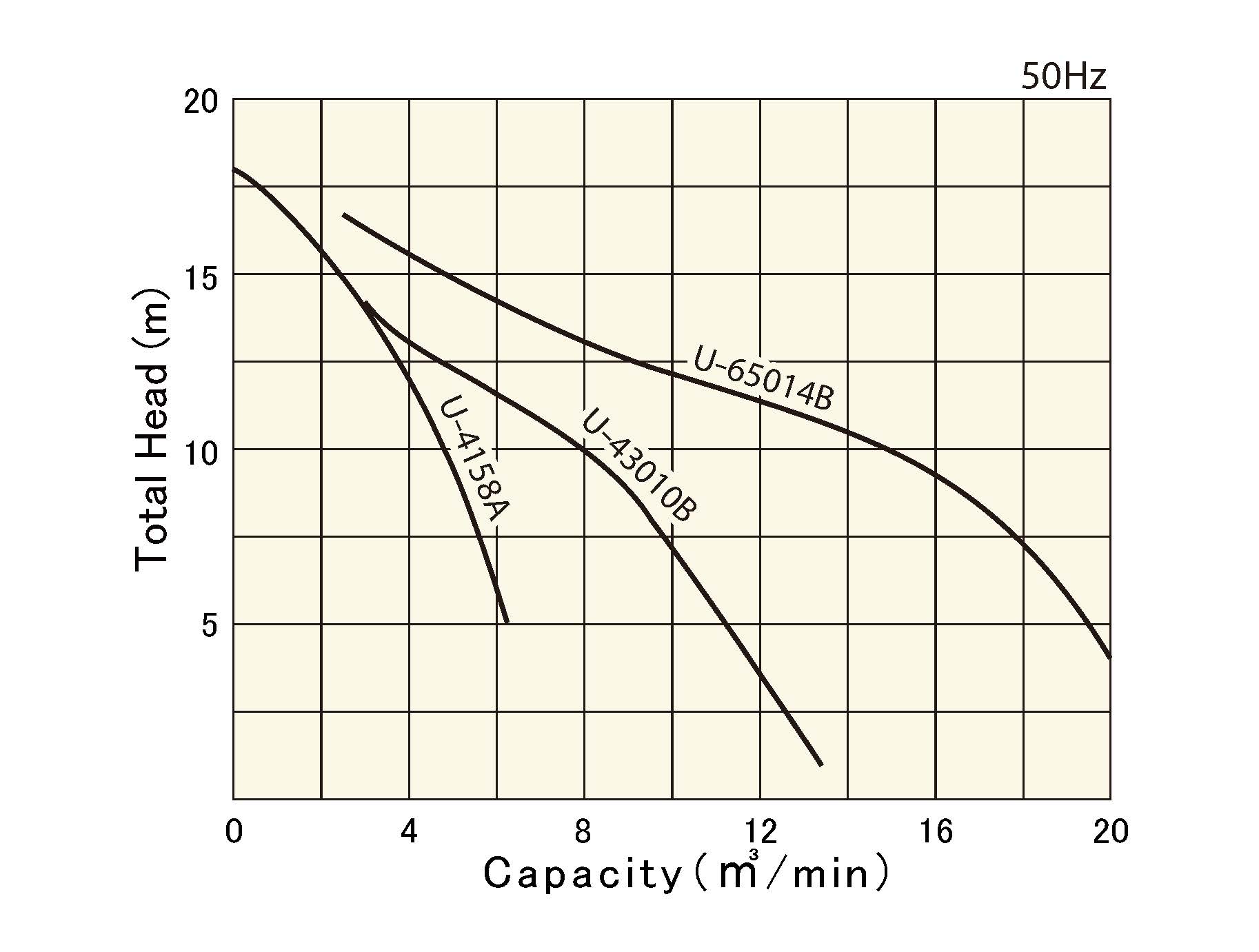

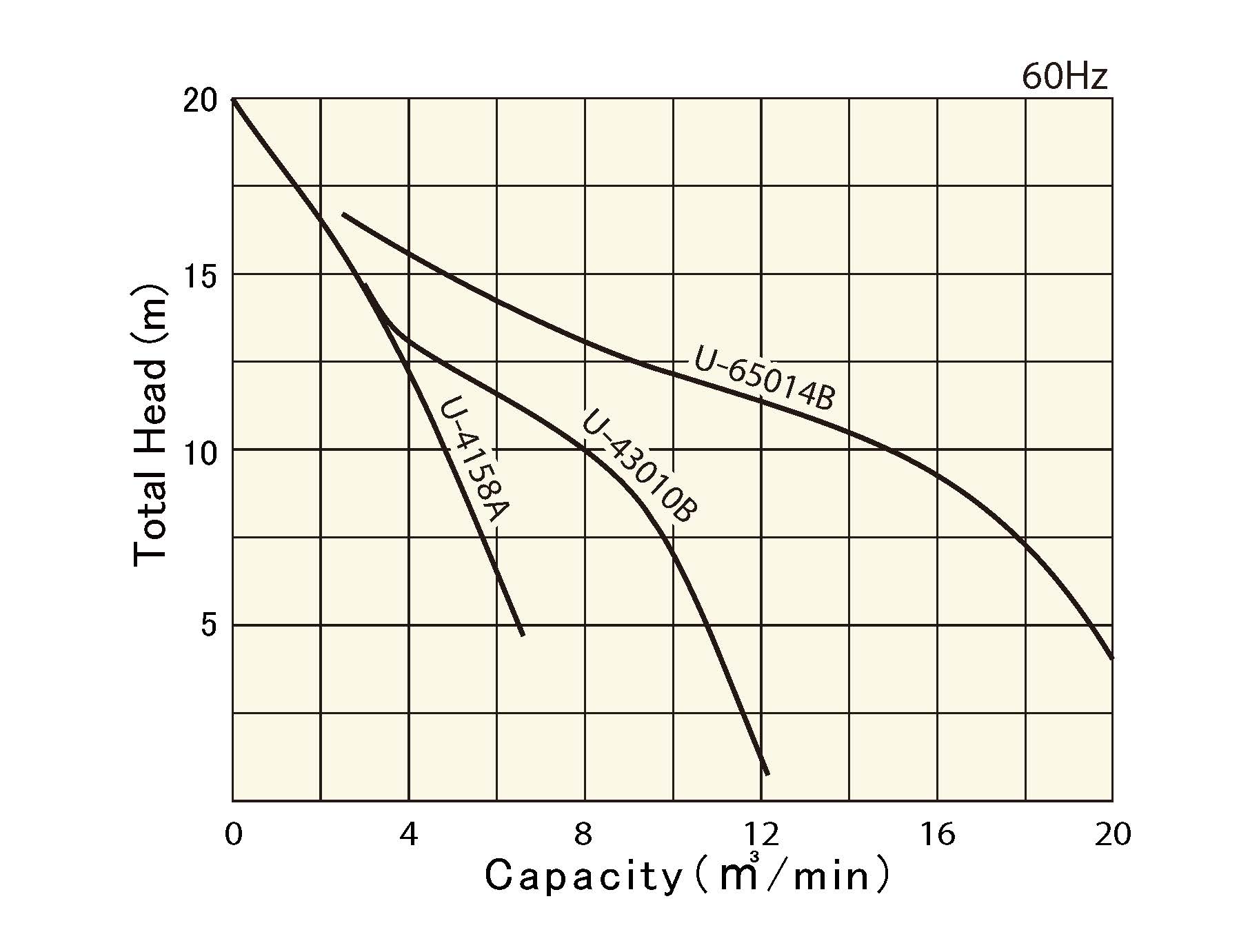

    PERFORMANCE CURVE

    uhc1

    uhc2

    uhc3

    uhc4

    SPECIFICATIONS

    ModelsDis.Dia.
    mm
    Motor Output
    kw
    Total Head
    m
    Capacity
    m³/min
    Max. Dia.
    mm
    Height
    mm
    Weight
    kg
    U-4158A20011104455940177
    U-420820015144455975227/212
    U-4306D150223325401130430
    U-4308200222245401158440
    U-43010B250221085401085440
    U-65014B3503710146701475700
    U-47510D250552786701435730

    For Sales and Repair, Call + 61 2 9457 8622
